Robust Mainline Crawler for Comprehensive Sewer Inspections

Anwendungen

Komponenten

Configure

Pipe diameter

multifrequency location

Long-range traction

Perfect climbing properties

Well-maneuverable

Accessories for critical applications

Inclinometer measurement

High-speed inspection

Tilting protection

Crack-width measurement

Deformation measurement

Scalable lighting

Point diameter measurement

Camera centering

Waterlevel measurement

Visual inspection

catalog-based reporting

Strong in all conditions

and more

VC500

Multi-functional, portable control panel
Robust design and daylight readable, high resolution touch-screen
Basis for operating software VISIONREPORT II with “WinCan Embedded Reporting“

DCX5000

Core control unit for custom-built vehicles with ergonomic design – optimally prepared for all inspection requirements
Touch-screen monitor for operating the system and for optimally monitoring the system status.
Handy 3-axis-joysticks with push-function for precise control of all crawler and camera functions incl. zoom

RMX200

Maximum 200 m high-stability camera cable
The E-box can be removed from the drum frame for future applications
Adjustable brake

RAX300

Maximum 300 m of extremely stable camera cable
The winding speed and the tensile force can be regulated continuously
Meter counter

RAX500

Maximum 500 m extremely robust camera cable
The winding speed and the pulling force is infinitely variable
Meter counter

RX95

Application range from DN100 up to DN200
Powerful six-wheel drive (steerable)
Location transmitter can be activated or switched over

RX130

Application range from DN150 up to DN1000
Powerful six-wheel drive (steerable)
Quick Change Design (QCD) for a simple and fast setup

RX130L

Application range from DN150 up to DN900
Powerful six-wheel drive (steerable)
Integrated, motor driven lifter
Quick Change Design (QCD) for a simple and fast setup

RX400

Application range from DN400 up to DN2000
Powerful four-wheel drive (steerable), electrically operated 2-speed-gearbox
Automatic lifter with sensor system for automatic camera centering inside the pipe

RAC50

Smallest camera model built for the use in narrow pipe systems
CMOS color camera
Powerful homogenous illumination through LED lighting

PTC50

Application range starts at DN100
CMOS color camera
Rotation and pan unit integrated in the camera head

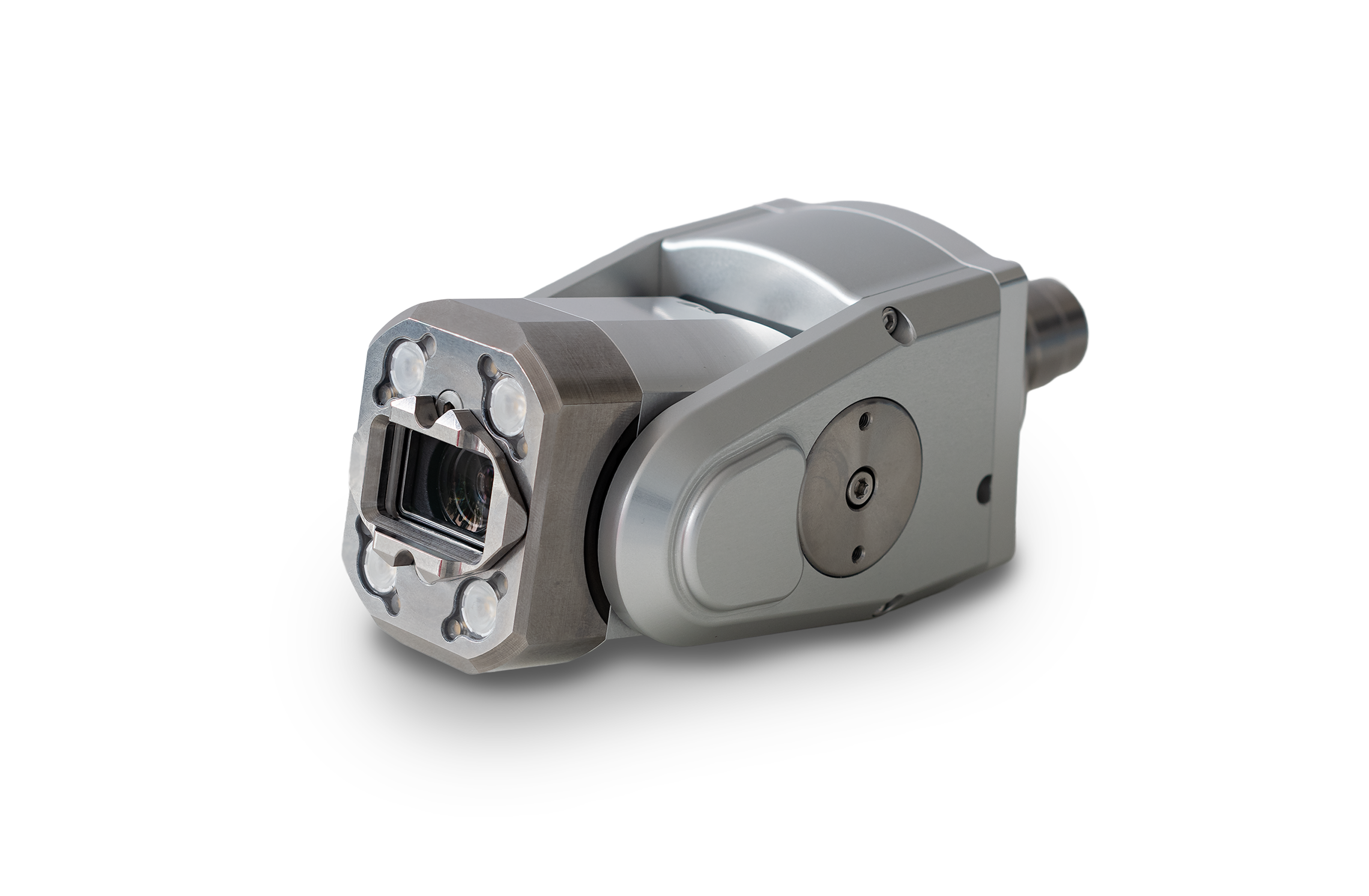

RCX90

Integrated laser to determine diameters and crack widths
Powerful homogenous illumination through separately adjustable LED illumination for close and far ranges.
Rotation and pan unit integrated in the camera head

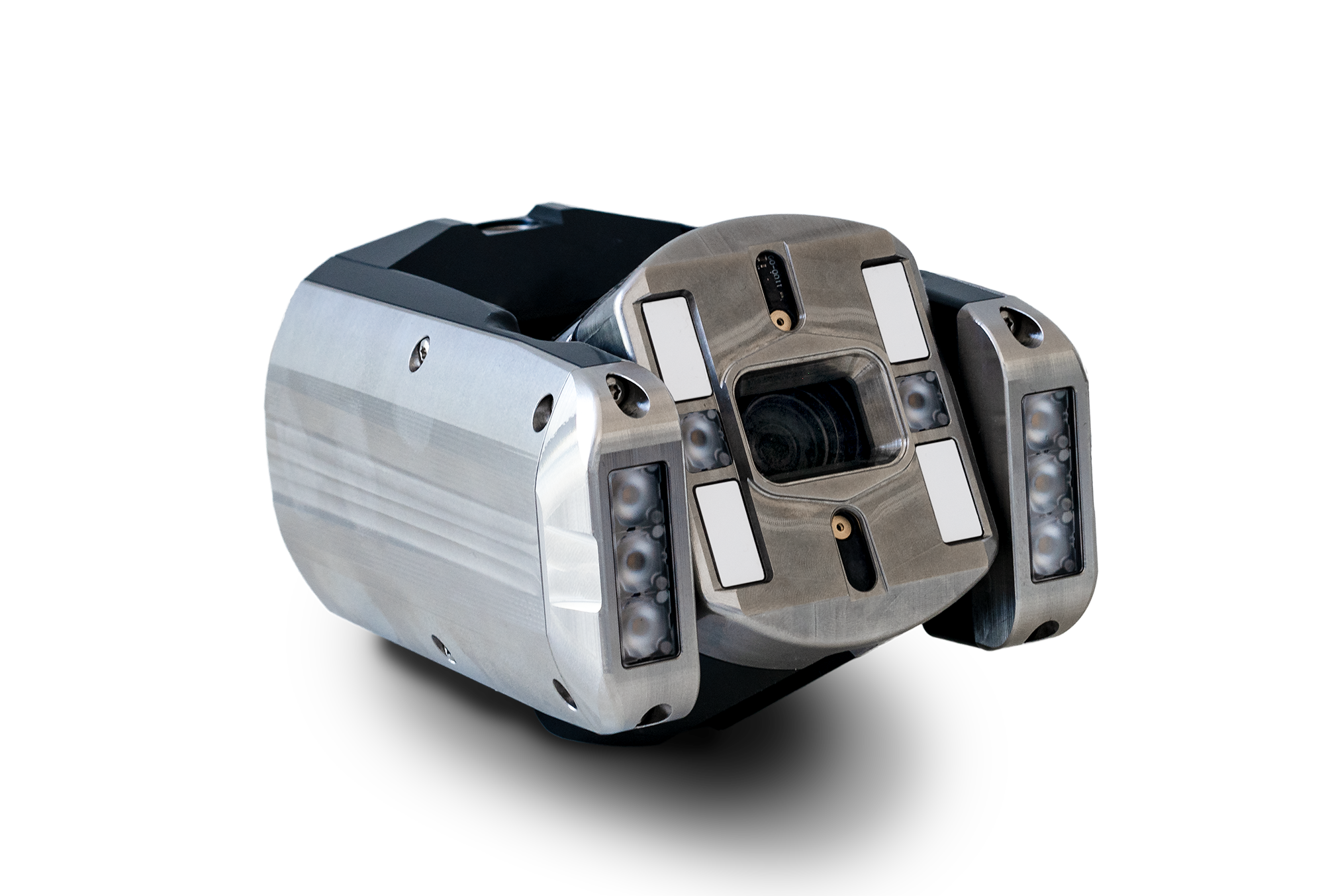

RCX100HD

More robust and reliable high-end pan-tilt-zoom camera
Quick sleeve inspections and diameter measurements thanks to state-of-the-art motors
10x faster diameter and deformation measurements than with traditional laser methods

Use the right joystick to move the crawler. The left joystick controls the camera. Adjust the camera angle and zoom. Use the touchscreen sliders to control the lights, lift, speed, and other functions.

Add notes to your inspections. Use observations, and data (speed, distance, camera angle). Customize your notes easily: drag and drop fields, save layouts, and add a logo.

Quickly add codes right on the screen. Type a few letters or choose from categories to find the right code. Add details as needed. Supports many code types, like PACP and WRc.

Quickly create PDF reports on the screen. Save them to your network or a USB drive. Choose from different report templates to show information clearly.

Measure flow, cracks, roots, pipe size, and angle of incoming lines with our advanced tools.

The ROVION controller connects to Wi-Fi. This lets you send inspections (data, videos, and photos) directly to WinCan Web for easy sharing, detailed analysis, and safe storage.

TAKE CONTROL

Complete solutions for sewer inspections

Learn More

01 CONTROL

02 OVERLAY

03 OBSERVATION

04 REPORTING

05 MEASUREMENT

06 UPLOADS

Add notes to your inspections. Use observations, and data (speed, distance, camera angle). Customize your notes easily: drag and drop fields, save layouts, and add a logo.

Quickly add codes right on the screen. Type a few letters or choose from categories to find the right code. Add details as needed. Supports many code types, like PACP and WRc.

Quickly create PDF reports on the screen. Save them to your network or a USB drive. Choose from different report templates to show information clearly.

Measure flow, cracks, roots, pipe size, and angle of incoming lines with our advanced tools.

The ROVION controller connects to Wi-Fi. This lets you send inspections (data, videos, and photos) directly to WinCan Web for easy sharing, detailed analysis, and safe storage.

01 Kontrolle

02 Ansicht

03 Beobachtungen

04 Reporting

05 Messwerkzeuge

06 UPLOADS

Bewege den Fahrwagen mit dem rechten Joystick. Der linke Joystick steuert die Kamera. Passe den Kamerawinkel und den Zoom an. Steuere mit den Touchscreen-Schiebereglern die Beleuchtung, den Heber, die Geschwindigkeit und andere Funktionen.

Füge Deinen Inspektionen Notizen hinzu. Verwende Beobachtungen und Daten (Geschwindigkeit, Entfernung, Kamerawinkel). Passe Deine Notizen ganz einfach an: Ziehe Felder per Drag & Drop, speichere Layouts und füge ein Logo hinzu.

Füge Codes schnell direkt auf dem Bildschirm hinzu. Gebe ein paar Buchstaben ein oder wähle aus Kategorien, um den richtigen Code zu finden. Füge nach Bedarf Details hinzu. Unterstützt viele Codetypen, wie PACP und WRc.

Erstelle schnell PDF-Berichte auf dem Bildschirm. Speicher sie in im Netzwerk oder auf einem USB-Laufwerk. Wähle aus verschiedenen Berichtsvorlagen, um Informationen übersichtlich darzustellen.

Messe mit unseren fortschrittlichen Werkzeugen Durchfluss, Risse, Wurzeln, Rohrgröße und Winkel eingehender Leitungen.

Das VC500 Bedienpult stellt eine Verbindung zum WLAN her. So kannst Du Inspektionen (Daten, Videos und Fotos) direkt an WinCan Web senden, um sie einfach zu teilen, detailliert zu analysieren und sicher zu speichern.
